cat7/cat6a flat patch cord cable

FEATURES

TIA/EIA-568B.2-1;ISO/IEO 11801;NEC/CEC
Fire protection – IEC60332-1 (CM)
Application: Horizontal communication cable; for indoor installation

Wiring Scheme

ANSI/TIA/EIA-568-C.2: T568A & T568B
ISO/IEC 11801: 8-position conductor/pair assignment (1-2/3-6/4-5/7-8)

CORDAGE

Constructor: 4 pairs, 7 strands, 24/26 AWG, UTP
Cable Type:UTP Cat.6 Patch Cable
Outer Cable Diameter: 6.0mm ± 0.2 mm

Pair Identification: Pair1= Blue/White    Pair2= Orange/White
                           Pair 3= Green/White  Pair4= Brown/White
Outer Jacket: PVC/LSZH Jacket

PLUG:

Type:Unshielded RJ45 8P8C Modular Plug
Housing: UL listed 94V-0/1/2 flame retardant polycarbonate
IDC blades: phosphor bronze, gold plating over 100 μin of nickel in contact area

MECHANICAL

Retention: 50 N (11 lbf) for 60±5 s
Mating cycle life: min 750 cycles
Tensile strength: ≥ 20 N per wire

Installation Temperature: 0°C to +60°C
Operating temperature: -20°C to +60°C
Minimum bend radius: 4 outer cable diameters

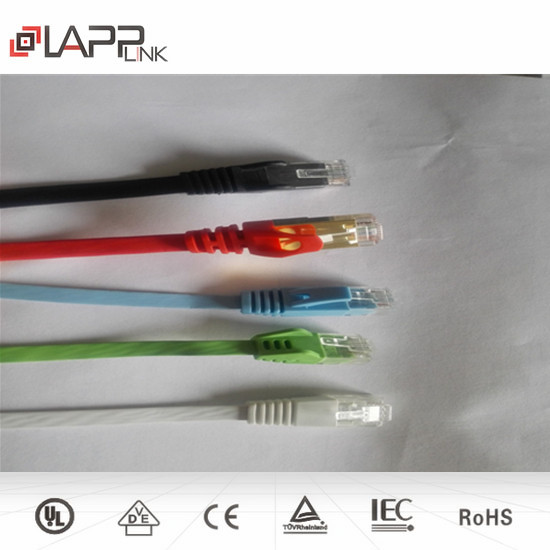

Boot Type: Any type of the above picture

Length:0.3m -30m or As per requested

Color:Grey/Green/Blue/White/Black/Red/Yel low

Package:polybag or Blister Package
