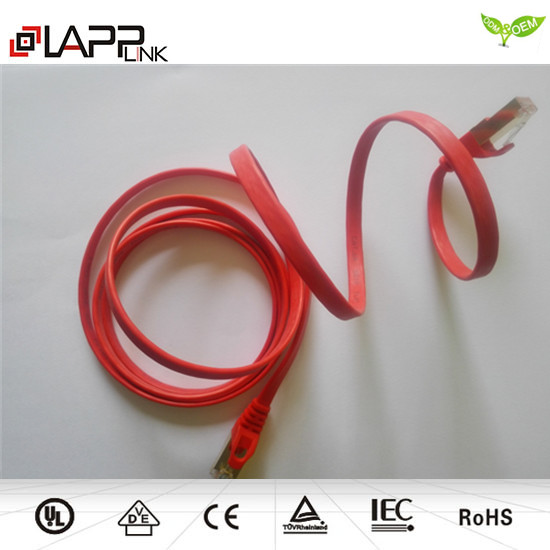

cat7 FLAT CABLE

Application

VoIP/ISDN/Token

100M TP-PDM

Analog and Data Video

TR-16 Active and Passive

155M/622M/1.2Gbit ATM

IEEE 802.3:10Base-T;100Base-T;

1000Base-T;10GBase-T



Product Description:

Rated temperature:60℃,75℃,90℃

Reference Standard: UL444, UL1581

Bare soild copper conductor

Pair shield whit Al foil

RoHS/REACH Complied PVC,PE or LSZH Jacket

Complies to TIA/EIA-568-C.2-10.IEC61156-5,

EN50173&IEC11801

Installation temperature:-30℃~+50℃

Minimum bending radius: 8D



Feature&Advantages:

CAT7 Cable is desinged for improving crosstalk performance between cables applying in 1000base-T Ethernet
with up to 500MHz bandwidth.Skin-foam-Skin insulation and pair shield design make the cable with
excellent shielding&anti-EMI performance.This cable complies to all the requirements for CAT7 of TIA/EIA568B-10&IEC61156.
