1. Overview
High quality CAT5E cable 4Pair UTP 24AWG solid bare copper 1000ft
High-Performance data cable ,application structured cabling, CCTV system , Alarm system , Telecom project etc.
Exceeds TIA/EIA-568B.2,ISO/IEC 11801 , ETL listed .
100Base-TX,100Base-T2 and 100Base-T4 standard.
Can be used for voice, integrated service data network (ISDN).

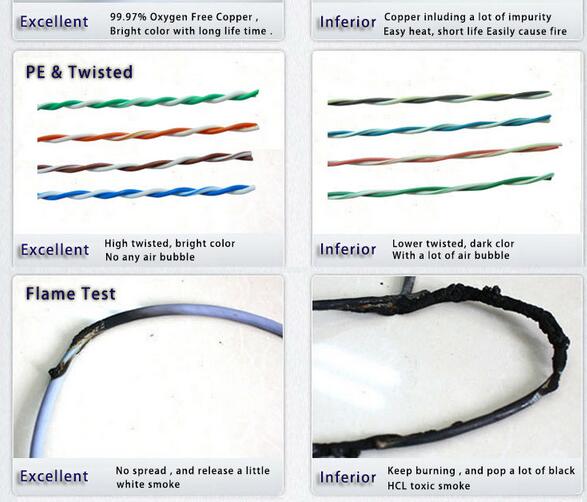

Long transmission distance, small transmission loss, wear resistance, resistance to pressure.
2. Product Structure
|
Model
|
CAT5E CABLE
|
|
Conductor Size
|
24AWG
|
|
0.5mm/0.51mm
|
|
Conductor Material
|
COPPER
|
|
Nuber Of Conductor
|
4Pair
|
|
Shiled
|
UTP/FTP
|
|
Flammability Grade
|
CMP,CMR,CM,CMX
|
|
Insulation Material
|
HDPE
|
|
Insulation Diameter
|
0.91mm
|
|
Jacket Material
|
PVC/HDPE, ROHS PVC, LSZH PVC
|
|
Outer Jacket Diameter
|
5.5mm
|
|
DC Resistance(Max.)
|
9.5Ω/100m
|
|
DC Resistance Imbalance
|
2.50%
|
|
Working Capacitance(Max.)
|
5.4nF/100m
|
|
Insulation Resistance
|
10000 MΩ.km
|
|
Transmission Velocity
|
65%
|
|
Operating Temperation
|
-40 °C - +75 °C
|
|
PVC Jacket Color
|
As client’s request.
|
|
Marking On Jacket
|
On your request (Print your brand)
|
